Tokens
The Authentication Framework does not use API keys and does not share usernames and passwords with 3rd party developers.
Instead, it provides authorized access via an Access Token and provides authenticated user information via an Identity Token.
When an Access Token becomes invalid or expires, a new one can be obtained via a Refresh Token.
Access tokens
Authorized access is provided to third party apps via an Access Token.
The Access Token is encoded in JSON Web Token format.
Obtaining an access token
Authorization code flow
The Authorization Code Flow is most typically used when an application needs to perform authorized actions on behalf of a user.
An Access Token is obtained via the OAuth 2.0 Authorization Code Grant flow.
Authenticating to an API which uses the Authentication Framework requires an External Application configuration to be created.
The back office administrator at your financial institution can do this for you.
Client credentials flow
The Client Credentials Flow is most typically used for machine-to-machine actions, i.e. the application is authorizing itself rather than a specific user.
An Access Token is obtained via the OAuth 2.0 Client Credentials flow.
Authenticating to an API which uses the Authentication Framework requires an External Application configuration to be created.
The back office administrator at your financial institution can do this for you.

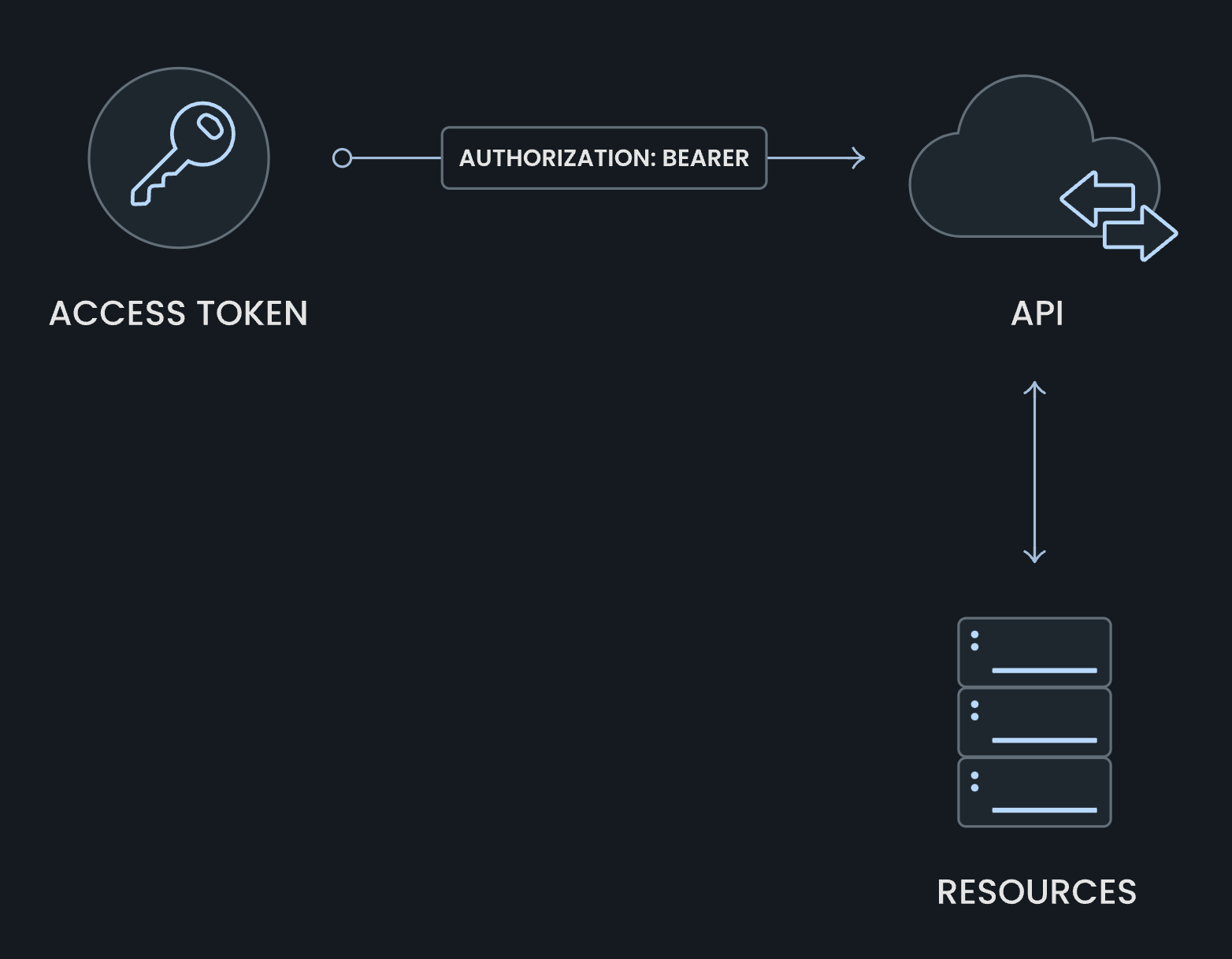

Usage as bearer token
API Requests must include the Access Token as a bearer token in the header.
Lifetime
Each individual Access Token has its own specific lifetime of 10 minutes from when that specific token was issued.
Identity tokens
Authenticated identity information about a user is provided to third party apps via an Identity Token.
The Identity Token is encoded in JSON Web Token format.
Obtaining an identity token
An Identity Token is obtained via the same OAuth 2.0 Authorization Code Grant flow used to obtain an Access Token, but with the addition of a scope parameter of openid.
Usage
The Identity Token asserts the identity of the user and can be used similar to an identity card. The kind of information provided depends upon the scope parameters requested.
Refresh tokens
When an Access Token becomes invalid or expires, a new one can be obtained via a Refresh Token.
Think about Refresh Tokens as being like tokens used for a vending machine, laundromat, or similar.
The Refresh Token is exchanged for some other thing (i.e., an Access Token).
Obtaining a refresh token
A Refresh Token can be requested from the authentication server by including the appropriate scope when initiating the OAuth 2.0 Authorization Code Grant flow.
For example, Banno’s Consumer API uses the scope https://api.banno.com/consumer/auth/offline_access to obtain a Refresh Token.
Usage
A Refresh Token can be exchanged for a new Access Token by making a refresh request to the token endpoint and including the grant_type and refresh_token parameters.
Lifetime
Each individual Refresh Token has its own specific lifetime of 90 days from when that specific token was issued.
It is important to note that each Refresh Token is part of a chain of tokens. The chain can be extended out (one token at a time) until 1 year from the original issue date of the first Refresh Token. After 1 year, a new authorization flow would have to be initiated to start a new chain of Refresh Tokens.
Example
Each individual Refresh Token in a chain (e.g. RefreshToken-1, RefreshToken-2, RefreshToken-3, …RefreshToken-n) has its own specific lifetime of 90 days from when that specific token was issued. The chain has a lifetime of 1 year.
Confidential clients
Confidential Clients are issued a Refresh Token on every use. However, old tokens are not invalidated and may continue to be used until their original expiration date. This allows Confidential Clients applications to obtain and utilize multiple Refresh Tokens at any given time.
Specific Implementations
The general concepts should apply to Jack Henry’s APIs, but specific implementations may vary.
Banno Digital Toolkit
See how the Banno Digital Toolkit handles Tokens.
